Matts Cuda Build Gettin there :D

Performance Plus!

Re: Matts Cuda Build Gettin there :D

Postby matt(boily) » Sun Jan 29, 2012 10:39 pm

Shaun the photos are just awesome. The missus loves the ones of the boys. They really came out great especially the action shots. Can't wait for the next session lol :D
Suzuki TL1000R Barracuda
matt(boily)
Taipan

Posts: 568
Joined: Fri Mar 24, 2006 9:28 pm
Location: Kalgoorlie,WA

Re: Matts Cuda Build Gettin there :D

Postby HoldenSS5L » Sun Jan 29, 2012 10:59 pm

No worries mate, thanks for the drive, I sooooo can't wait to get mine going ;)

Shaun
HoldenSS5L
Fun Kart

Posts: 162
Joined: Mon Oct 10, 2011 2:55 am
Location: Kalgoorlie

Re: Matts Cuda Build Gettin there :D

Postby matt(boily) » Tue Mar 27, 2012 3:52 pm

Little update. Had a big session Sunday. Buggy went great and had no major issues. Some of the guys from work that were out couldn't believe how fast it is. Was keeping pace with 450 racing quads and once i was in front there was no catching me. Still sorting electrical issues out with thermo fans but that is an easy issue. Should get some photos of the run some time this week. I'll post them once I have them.

Will hopefully see my new cv boots this week.I will be making new rear lower suspension arms up to accomodate the clearance for the new CV's. Also be making a weatherproof box for carrying my phone and spares. Had an issue with crossing a puddle and got absolutley soaked which almost buggered my phone. Panels will be also going on as hitting the puddle has prompted some need for them.

I'll be stripping the buggy down over the next couple of weeks to get it ready for paint.

I've attached a very professional :roll: photoshop of the colour scheme i'm going for. Should turn out good once done.

Suzuki TL1000R Barracuda
matt(boily)
Taipan

Posts: 568
Joined: Fri Mar 24, 2006 9:28 pm
Location: Kalgoorlie,WA

Re: Matts Cuda Build Gettin there :D

Postby itchyback » Tue Mar 27, 2012 5:43 pm

if the paint job is half as good as your ms paint skills, it'll look stella!
Two Seat Barracuda 2.0
Completed.... except for upgrades, repairs, modifications....
User avatar
itchyback
Trax II

Posts: 447
Joined: Thu Feb 25, 2010 10:13 pm
Location: Brisbane

Re: Matts Cuda Build Gettin there :D

Postby HoldenSS5L » Tue Mar 27, 2012 8:30 pm

hahaha...

Panelling the buggy in hmmmm... All I can say is thankyou puddle hahaha

Shaun
HoldenSS5L
Fun Kart

Posts: 162
Joined: Mon Oct 10, 2011 2:55 am
Location: Kalgoorlie

Re: Matts Cuda Build Gettin there :D

Postby matt(boily) » Fri Aug 24, 2012 11:52 pm

Gee its been a while. Had lots happening. Got new role at work. Now shift boilermaker. 2 days 2 nights 4 off. So got myself on a sweet deal and got some more time to get this buggy finished. Even get some time at work when i get a chance to get some stuff done. So here is the List:

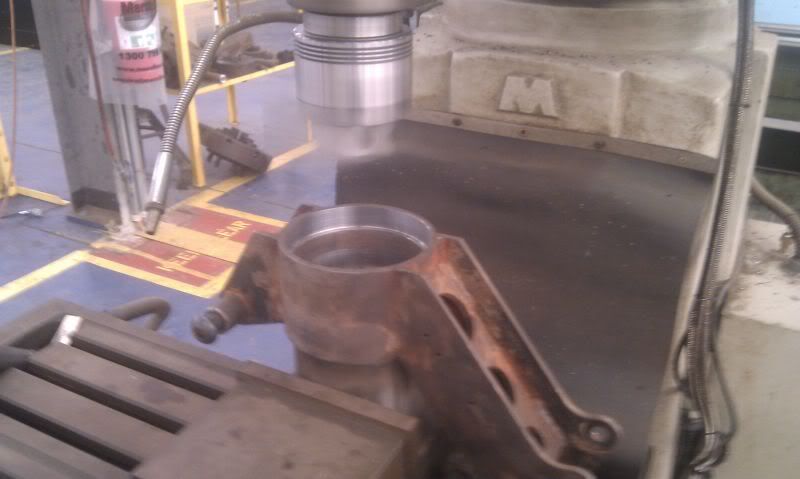

Machined rear hubs in lathe and mill to bring back true. Welding distorted enough to damage 1 bearing.

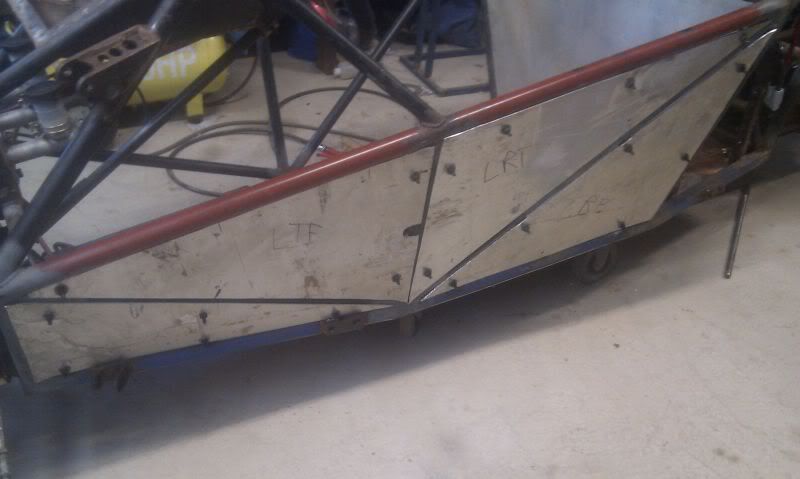

Panel buggy
Replace cut out engine support that got in the way of the clutch cylinder(couldn't get it out when over extended)

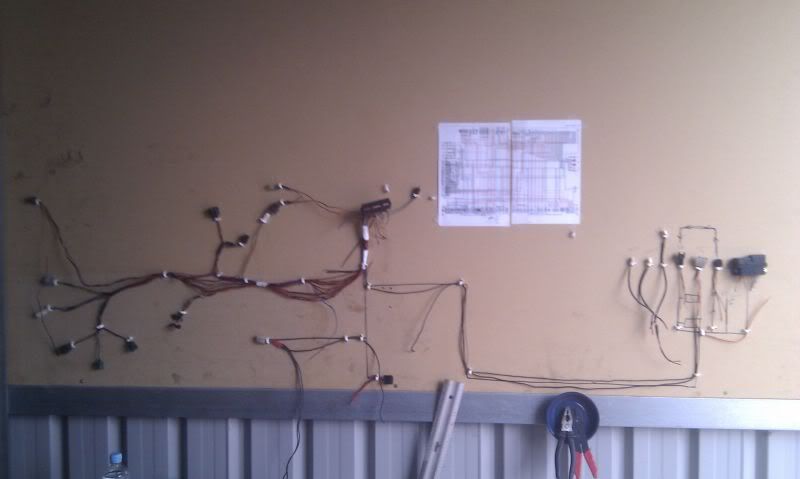

Re wire buggy for better access, more reliable and overall look of wiring(not excited about this one)
Repair misalignment of rear PirCV Catridge. Swingarm pivot holes are out by 1mm causing binding, tie rod wear and bush wear.
Fabricate new rear lower suspension arms for a bit of strength and the new CV boots
Fabricate new front top suspension arm for more turning lock.

I've attached some photos of what I've gotten through. More to come soon.



Suzuki TL1000R Barracuda
matt(boily)
Taipan

Posts: 568
Joined: Fri Mar 24, 2006 9:28 pm
Location: Kalgoorlie,WA

Re: Matts Cuda Build Gettin there :D

Postby lauzynas1 » Sat Aug 25, 2012 6:03 am

Nice, I like your wiring fence, just like in factory :)
lauzynas1
Trax II

Posts: 229
Joined: Sat Sep 19, 2009 3:57 am
Location: Lithuania

Re: Matts Cuda Build Gettin there :D

Postby Mclovin » Sat Aug 25, 2012 10:32 am

Doing the wiring like that is a bloody good idea!
"To be old and wise first you need to be young and stupid"

50% complete Piranha Kawasaki ZZR 600
Mclovin
Taipan

Posts: 636
Joined: Sun Jan 04, 2009 10:48 am
Location: Tasmania, Australia

Re: Matts Cuda Build Gettin there :D

Postby matt(boily) » Sat Aug 25, 2012 12:25 pm

Helps first that i had it made already. Getting lengths for all the different connections would take some time to get right. I had some issues with fans blowing fuses and just a general mess of wires so it needed a clean up and better setup for AUX equipment like fans, lights ect.

It does make it heaps easier to lay it out when its setup like this. Easy enough to make one the clips holding it all down are eletrical nail in loops. pack of 100 are $4 from bunnings and a piece of MDF lying around.

Keen as to get it all blasted, painted and ready to go. There is a bike and car show this October and having it done and on display might get some interests if i decide to sell it for another project.
Suzuki TL1000R Barracuda
matt(boily)
Taipan

Posts: 568
Joined: Fri Mar 24, 2006 9:28 pm
Location: Kalgoorlie,WA
