Re: Shockwaves Barracuda Build

Postby Shockwave » Fri Jan 20, 2017 4:37 pm

Corza19 wrote:Or am I confused lol

You are! :lol:
I will make a picture if it is done, maybe saturday.
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Shockwave » Mon Jan 23, 2017 5:58 pm

Again a weekend comes and goes..

The centre hub ring I wrote about
I ve drilled and cut 6 threads of M8 and connected it with slugs. Now the outer ring cant spin anymore.

Then I welded the fuel tank.
I filled it with 22 litre water which I took from home to the workshop (the rain barrel outside is frosen :roll: )
But there was much more space. I think it has a capacity of about 27L. That wasnt planned but nice to have.
I found three lil holes which could fixed quickly.

I also could install the old fill level sensor of the FJ. With the normal fuel tank design I couldn't do it.
I inserted the filler cap, unfortunately the material was so thin that it has a littel distorted while welding. (And it is spinned a few degrees, but thats ok for me. :D )
Last edited by Shockwave on Tue Jan 31, 2017 5:10 pm, edited 2 times in total.
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Corza19 » Mon Jan 23, 2017 11:30 pm

Ahh I get the centre hub now haha looks good mate

Great work on the fuel tank!
"Drop a gear and disappear"
Corza19
Trax II

Posts: 275
Joined: Mon Dec 01, 2014 7:16 pm
Location: Victoria, Australia

Re: Shockwaves Barracuda Build

Postby Shockwave » Thu Feb 02, 2017 6:39 am

After a few days I will update a little.

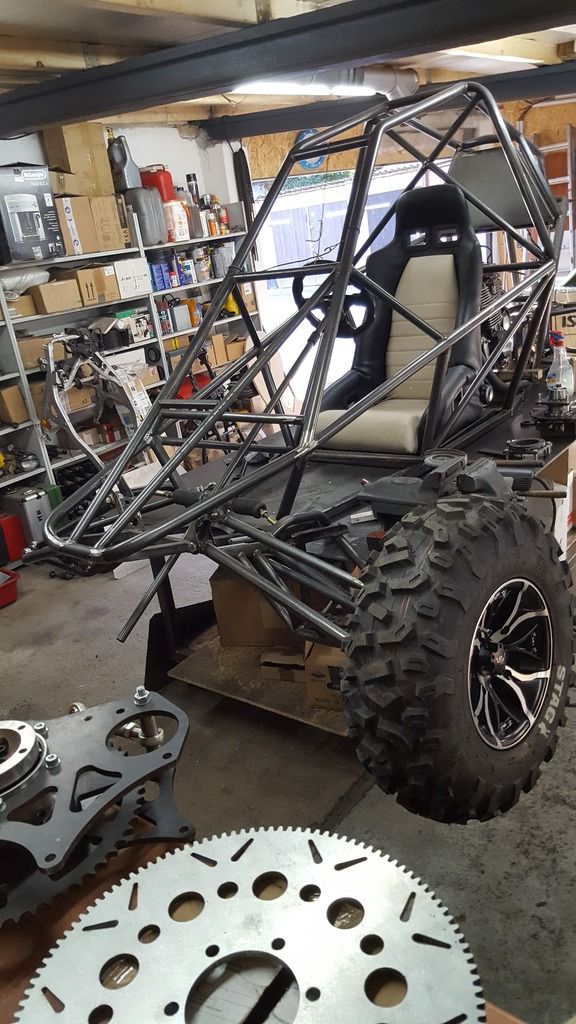

I sold a few parts of the FJ (Rims+Tyres & Shocks) and I brought 100kg scrap iron to the junkyard.
Now there is more space in the Workshop. *g*

I welded the fuel tank tags ready and produced little rupperplates to decouple the tank from the frame.

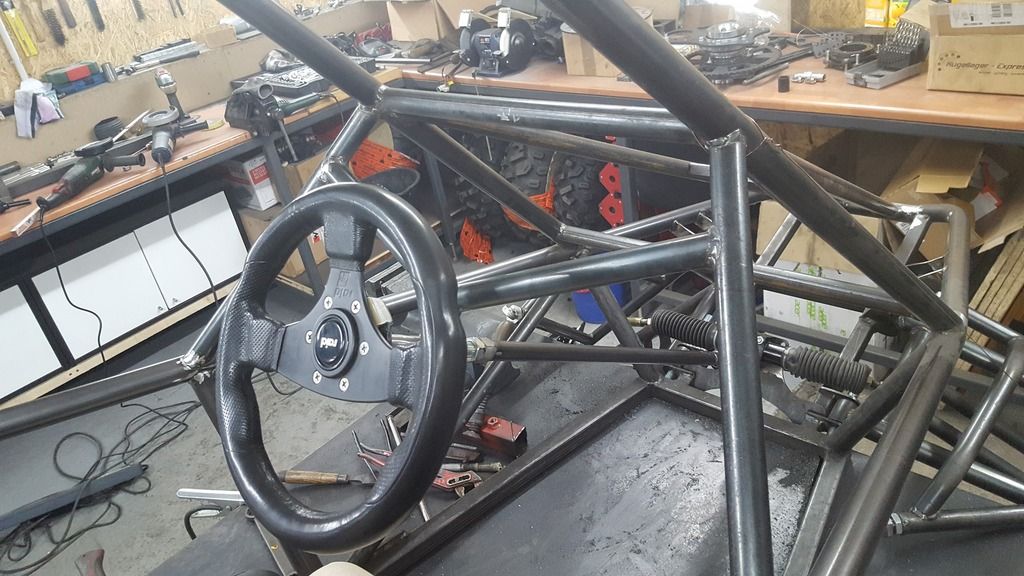

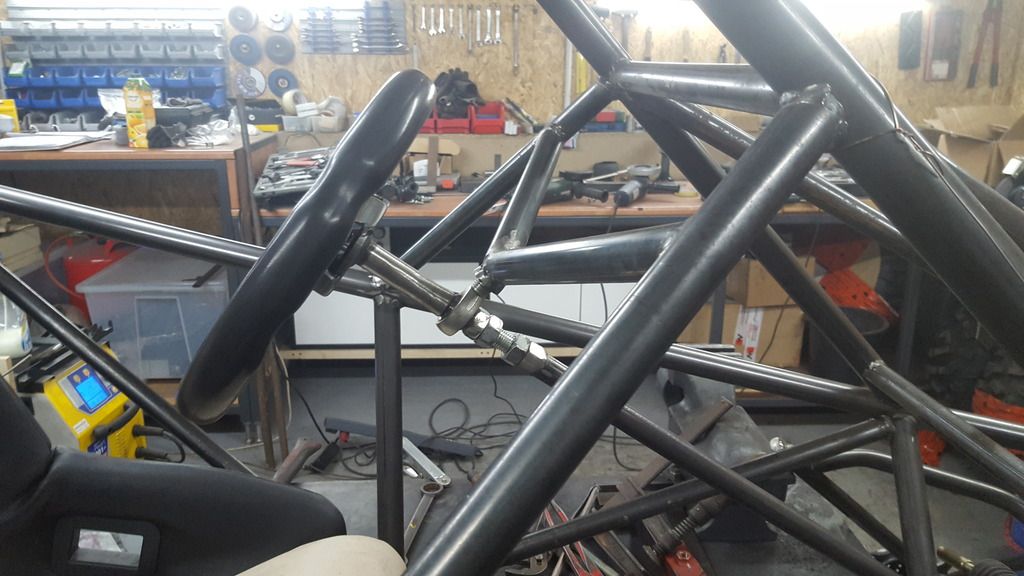

Bought a 30cm steering wheel at the junkyard and connected it to a pipe so that I can also use the original horn button.

Steering wheel triangle is a little small for all levers and the speedometer. Maybe I will change the layout.

A friend sold me a seet and two exhaust's. After I disassembled the seat slides I saw two cables, it turned out that its a seat heater!!!
Is it needed: NO, but "cool" to have for long cold winters like these.

I ordered a speedometer "Koso Rx2n replica" from china 30€ vs 230€. For this price I will test it. :D
I'm still waiting for all nuts and bolts. :cry:

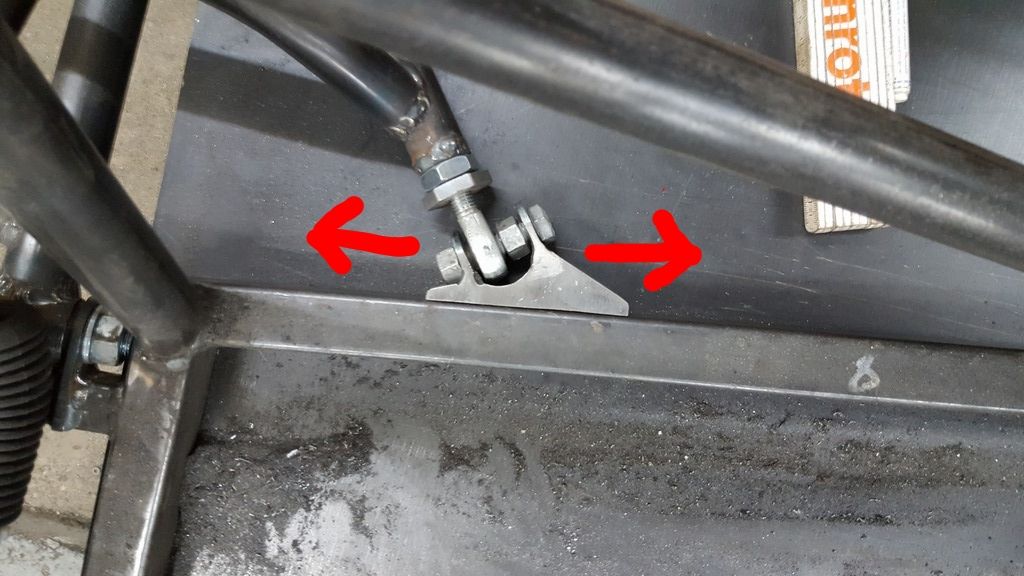

I spottet the rear shock mounts. The distance is only 20mm but the lower mounts of the planned shock are 1 1/4" = 31,75mm
I planned using 2" Fox AirShocks
Now I saw the graphic in the plans, and it seems, that you do not have to weld it directly on the top plates rather set a little outside. 20mm + 2x6mm = 32mm

I generally dislike that the plans only shows the self made parts. On a lot of positions you need to see detailed drawings. On other parts you need to know where to weld.
But after the first buggy you know how to do. :lol:
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Corza19 » Thu Feb 02, 2017 6:53 pm

Great work mate!

Yeah the shock plates are welded on the outside, and yeah that's one of the pitfalls of the plans haha
"Drop a gear and disappear"
Corza19
Trax II

Posts: 275
Joined: Mon Dec 01, 2014 7:16 pm
Location: Victoria, Australia

Re: Shockwaves Barracuda Build

Postby kenrox » Thu Feb 02, 2017 7:44 pm

well i decided to use the cv2 uprights without the caliper mount plates; as the shock plate is a single piece. saves a lot of time and sanity :) (needs a shock spacer though)
Last edited by kenrox on Thu Feb 02, 2017 9:12 pm, edited 1 time in total.
kenrox
Registered Member

Posts: 23
Joined: Mon Mar 16, 2015 7:29 pm

Re: Shockwaves Barracuda Build

Postby Shockwave » Thu Feb 02, 2017 9:01 pm

Grrr!!! Now its fully welded and fits together.
I dont want to change it for the first buggy, maybe I will use it at the second one. :x
Did you also bought it from edge only due to this piece?
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby kenrox » Thu Feb 02, 2017 9:09 pm

no i'll also build an x2 or else the wife will kill me :D
and also cv2 plans and cv2 rear upright laser files (which is $4.95) are on eziplans site.
you can either buy the plans or just by the rear upright laser files and figure the rest our yourself which you've already done :)
kenrox
Registered Member

Posts: 23
Joined: Mon Mar 16, 2015 7:29 pm

Re: Shockwaves Barracuda Build

Postby Shockwave » Thu Feb 02, 2017 9:22 pm

thx Kenrox, for the next one I will take a closer look to eziplan.
I baught the plans 2013 and its a little frustrating to see the newer, better, easier parts. But in 2013 it also drove and made fun. :lol:
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby kenrox » Thu Feb 02, 2017 9:32 pm

well i think it's always good news to see better, improved parts. i think tony has a really really good sense of balance of innovation and adaptability when it comes to new parts; radical updates without changing the whole lot that's a really neat trick. like the cv2. and the x2.
if you happen to have a cuda and x2 chassis. you can just exchange the parts and go. what more can one want :)

and using the cv2 rear upright has an advantage; if you need more brakes or you decide to use an lsd diff you can just install brakes on the uprighrs and get rid of the center brake and etc.
kenrox
Registered Member

Posts: 23
Joined: Mon Mar 16, 2015 7:29 pm

Re: Shockwaves Barracuda Build

Postby Shockwave » Tue Feb 07, 2017 8:21 pm

Yes your right Kenrox, the possibility to combine new suspension parts with older buggy models is very cool.

Last time I worked at the front Suspension.

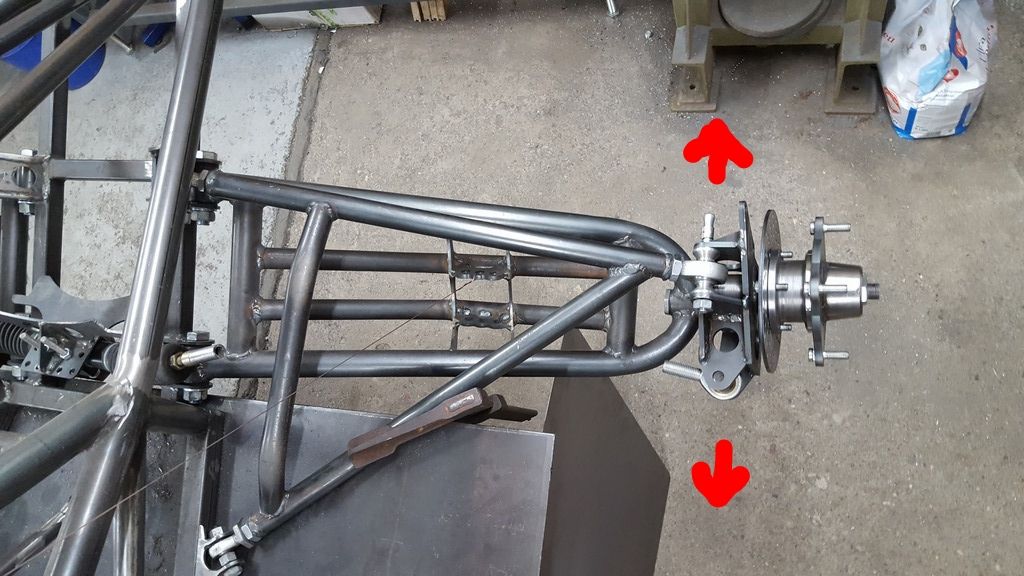

I welded the front uprights, wheelhubs and plates, connected the stub axles and it spinns very well. :D *lucky

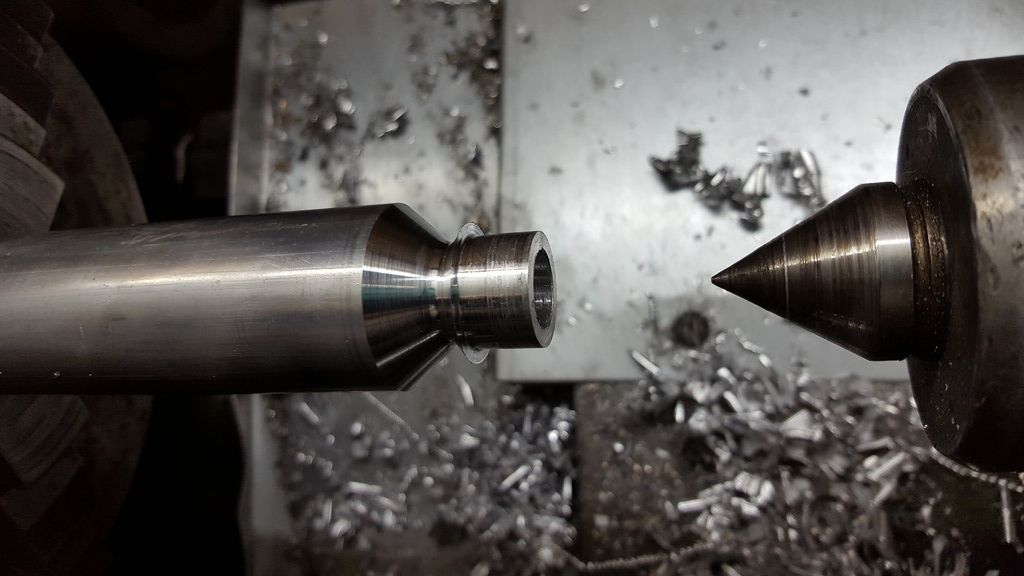

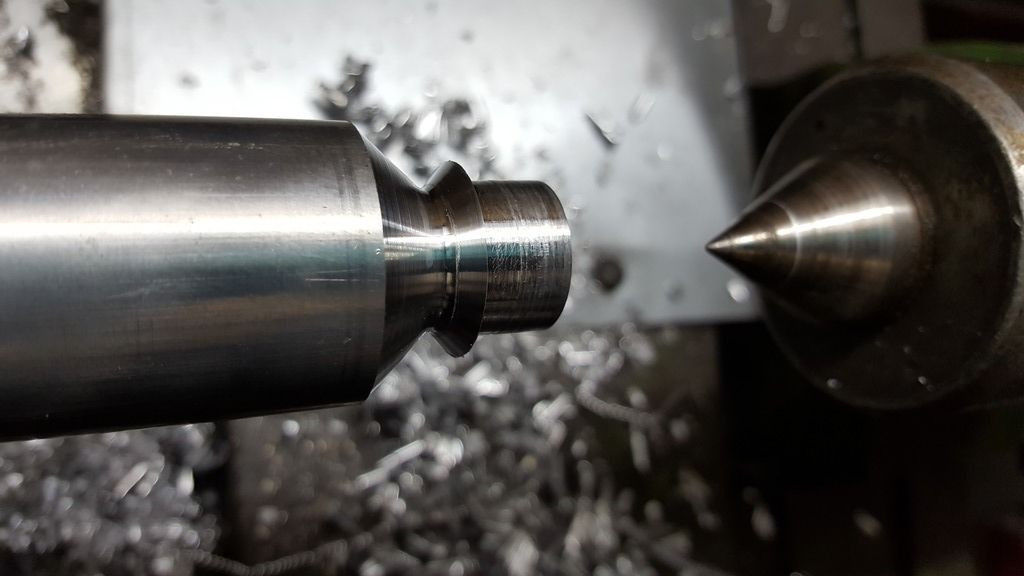

I got the 3.3547 aluminium bar from a friend. And stood the whole sunday in front of the lathe to produce the Rod end spacers.
I think they look good. Turning alu is a grateful job.

I've build the dash frame with a rod end for the steering tube. I changed the Design a little because I need much space for Speedometer, ignition lock, Startswitch and lot of Light Levers. (Streetlegal useless sh#t 8) )
Lil video:
http://vid1248.photobucket.com/albums/hh483/evawkcohS/Barracuda/20170204_184356_zpsksowsfg7.mp4

A Few Questions:

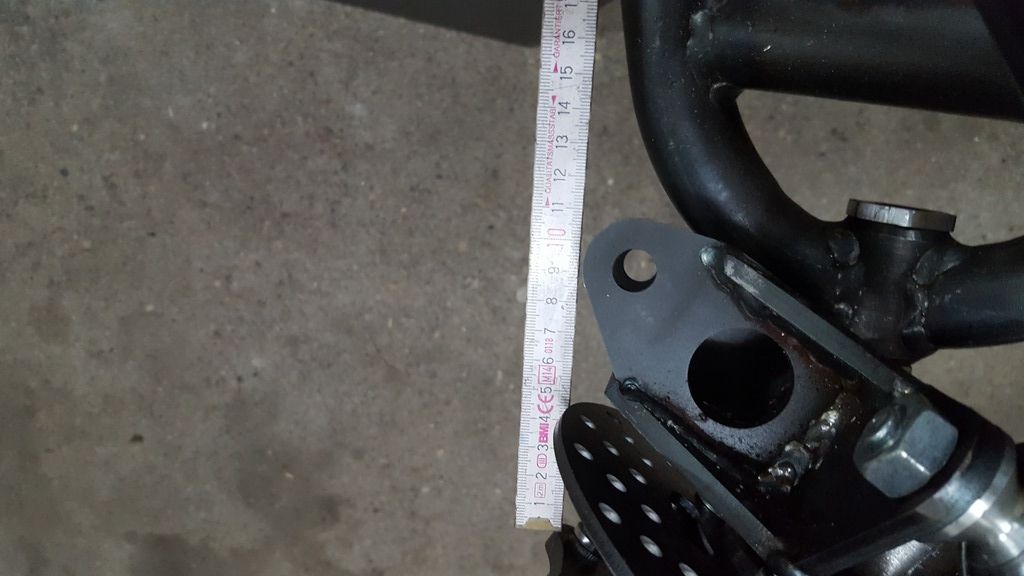

I can spin the rack and pinion 90mm in both directions
And on the uprights therer are 95mm possible. Thats ok I think.
Is it OK? How many movement is normal? (Corey also measured 95mm, Thx for that! :!: )
(The pic shows the right side)

2nd question:
I already asked about the front upper suspension arm.
Now everything is connected and fits together but:

a) When I spin in the caster adjuster completely, the caster is 0° (or 90° when looking at the hole one)
so when I spin it out I can only adjust a negative caster and that isn't normal I think.
Or is it normal for a Buggy? Tony said I should adjust 4°. Did he meant +2°to -2° or 0° to +4°

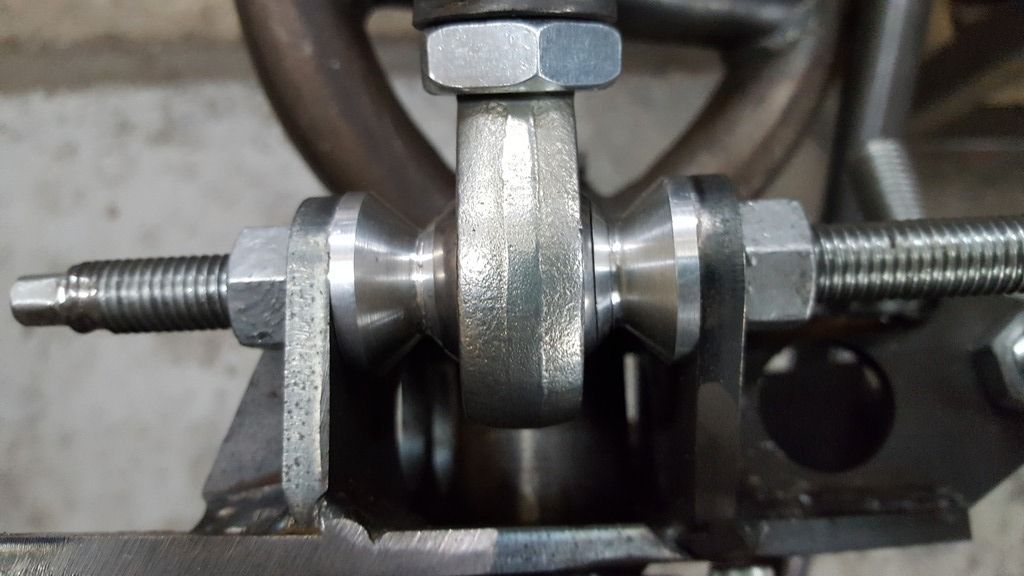

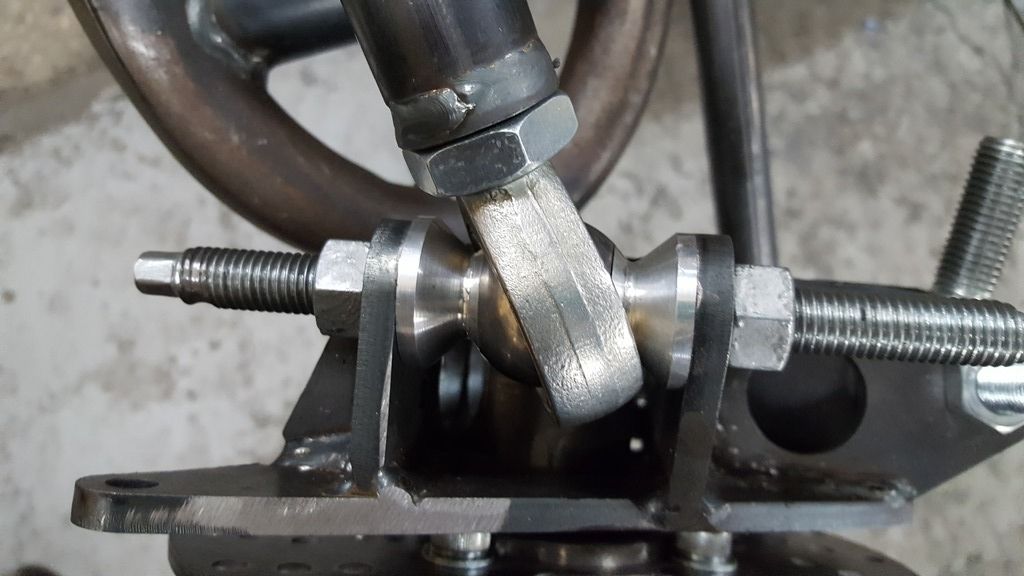

b) If I want to adjust the caster, the A arm gets wirder and the rod end wants to move right or left.
I fixed it all with nuts and clamps but the result is I can spin 1 round in both Directions then it is blocked.
Whats wrong with it? :(
Last edited by Shockwave on Wed Feb 08, 2017 8:33 pm, edited 3 times in total.
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Corza19 » Tue Feb 07, 2017 9:34 pm

Good progress mate!

I'm not too sure with the suspension problems sorry, all I know is when you wind the castor adjuster nut in or out it leans the top of the upright back or forth...
"Drop a gear and disappear"
Corza19
Trax II

Posts: 275
Joined: Mon Dec 01, 2014 7:16 pm
Location: Victoria, Australia

Re: Shockwaves Barracuda Build

Postby Shockwave » Wed Feb 08, 2017 7:34 pm

Yes good Progress, but I do not have to do any homework, so I can come home, changing clothes and go straightway to my workshop. :D
But such problems needs so much time.. *grrr

Yesterday I machined out the 6 aluminium adjuster plate spacer to hold the drive cartridge in the centre housing.

I prepared the housing Capscrews.

And I connected the petcock with a new rubber gasket and filled 5l water in the tank.
after it I tested with compressed air if it is leaky. The petcock isn't but a few other welds! :oops: :shock: :twisted:
Never thougt about the difficulty to weld something holding water.

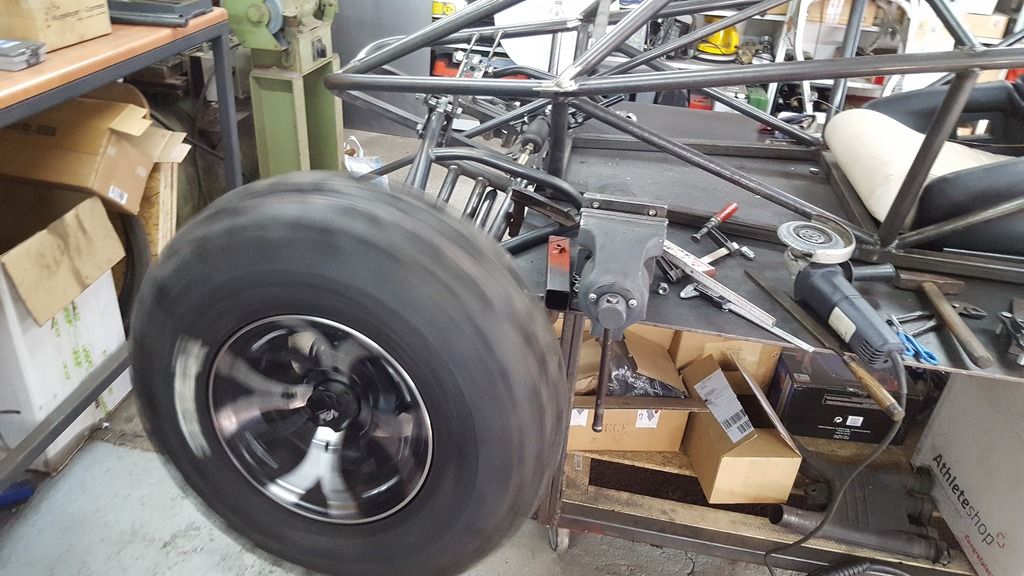

I Bolted the rear wheel plate the first time. So I could see how it will be look.
The overall width of 1900mm gives this "mini buggy" a very tough look.
Everytime I connect a wheel Im luckier and luckier. :P

A Friend told me about a write error. He said that the tire maker probably would like to write "SWAG" not "STAG" :lol:
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Corza19 » Wed Feb 08, 2017 10:12 pm

Looking good mate!

What size are your rims?
"Drop a gear and disappear"
Corza19
Trax II

Posts: 275
Joined: Mon Dec 01, 2014 7:16 pm
Location: Victoria, Australia

Re: Shockwaves Barracuda Build

Postby Shockwave » Wed Feb 08, 2017 10:31 pm

12" Like in the plans
front 12" 26x9"
rear 12" 26x11"
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Shockwave » Thu Feb 09, 2017 7:02 pm

Yesterday I installed the centre cartridge
That was a loooong way!

After it a friend helped me to align the engine.

Then I temporary spottet brackets to hold the studding and the Engine in its position.

I started producing the Engine mount tubes
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Shockwave » Fri Feb 10, 2017 6:26 pm

Yesterday I started with the first three Enginemountpoints (Painting with PhotoBucket is really crap)


I tested it with the old chain of the FJ.

After it I could see, that the chain connects the lower right engine mount. :oops:

Solution:
A smaller engine sprocket and reduce the lenght of the mounttube should help. At least I will use the old rubber from the FJ

I have 8 Mountpoints, (4 both side)
When Im ready with mounting, there is no space left for exhaust pipes. :shock:
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany

Re: Shockwaves Barracuda Build

Postby Corza19 » Fri Feb 10, 2017 9:10 pm

Looking good mate!

What size engine sprocket are you gonna run?
"Drop a gear and disappear"
Corza19
Trax II

Posts: 275
Joined: Mon Dec 01, 2014 7:16 pm
Location: Victoria, Australia

Re: Shockwaves Barracuda Build

Postby kenrox » Sat Feb 11, 2017 1:20 am

nice wheeelz :D (i'd still prefer beadlock ones though)
kenrox
Registered Member

Posts: 23
Joined: Mon Mar 16, 2015 7:29 pm

Re: Shockwaves Barracuda Build

Postby Shockwave » Sat Feb 11, 2017 8:20 am

I've searched for beadlock rims but in germany you can only buy 10" beadlocks for quads.
12" is a very exotic size here. The Buggy and Offroad Community is very small.

There where also only a little spread between a simple steel wheel and this aluminium ones.
I've searched longer for it than for the Engine. :lol:
Work it harder, Make it better, Do it faster, Makes us stronger
http://i1248.photobucket.com/albums/hh483/evawkcohS/Barracuda
User avatar
Shockwave
Raven

Posts: 77
Joined: Wed Oct 26, 2016 1:24 am
Location: Germany
